The RAK18001 WisBlock Buzzer Module is a compact audio output board built around the Jiangsu MLT-5020 buzzer element. Controlled via a PWM signal from a WisBlock Core module, it can generate tones, alerts, status beeps or simple melodies for interactive IoT devices.
Designed to fit slots A, B, C or D of the WisBlock Base Board RAK19007, the module provides a straightforward way to add audible feedback to applications such as alarms, equipment status indicators, user interaction prompts and remote notification systems. With a 75 dB output at 10 cm, it offers clear audio in compact enclosures while maintaining low power consumption.
π Note: The buzzer is controlled via a single IO pin, with tone and volume shaped by PWM duty cycle and frequency.
KEY FEATURES
- PWM-Controlled Sound: Generate tones, alarms or user feedback using WisBlock Core PWM output.
- 75 dB Output at 10 cm: Provides clear, audible alerts in indoor and enclosure-based deployments.
- 3 V Input Voltage: Simple integration with WisBlock power systems.
- Fits Slots A/B/C/D: Flexible placement on the WisBlock RAK19007 Base Board.
- Compact 10 Γ 10 mm Module: Ideal for embedded designs and tight enclosures.
- Low Power Operation: Suitable for battery-powered IoT devices.
IDEAL FOR
Alarms & Alerts on IoT devices
User Feedback (button confirmation, status beeps)
Automation Systems requiring audible indicators
Smart Equipment diagnostics and error signalling
Remote or Industrial IoT Nodes needing simple audio cues
Maker Projects that require sound without external audio circuits

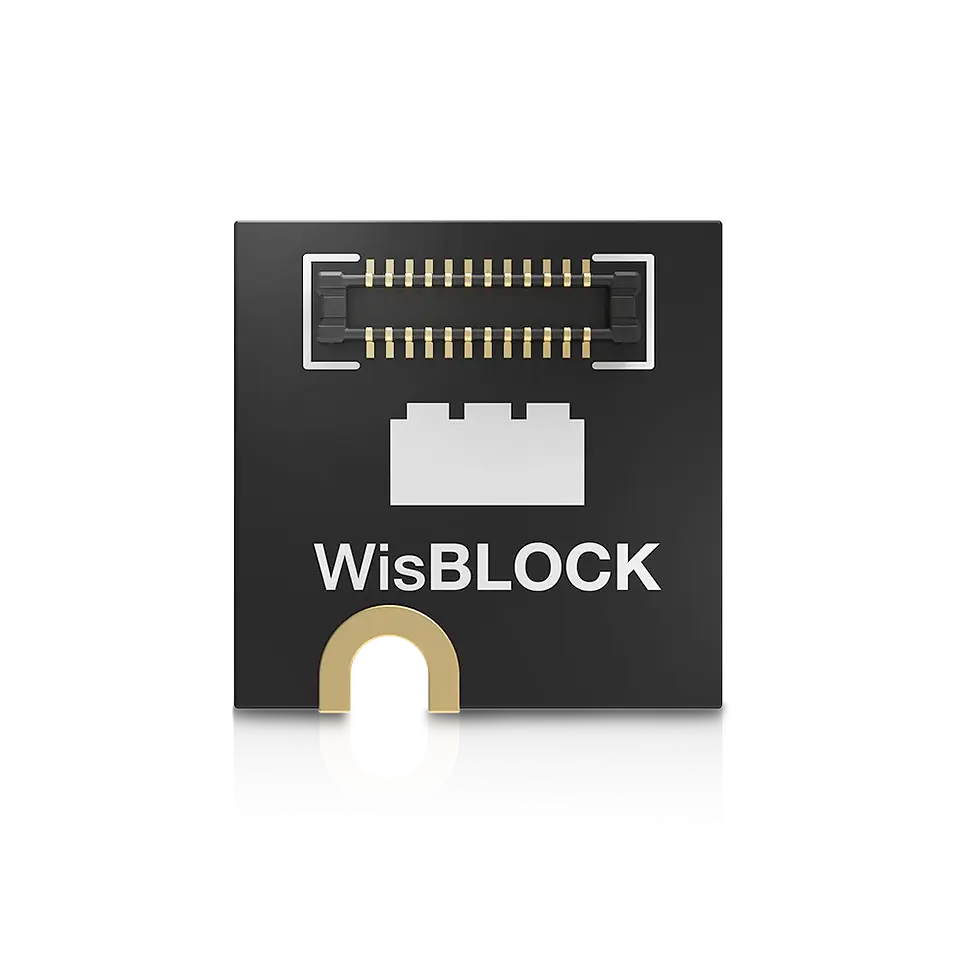

WisBlock Buzzer Module β RAK18001 (MLT-5020)
The WisBlock Buzzer Module β RAK18001 is a compact MLT-5020 audio module that provides PWM-controlled sound output for alarms, alerts and audible feedback in WisBlock-based IoT systems.
