G11
High Performance 5G Cellular Gateway
All-in-one router, gateway, data-aggregator and controller with extensive connectivity features
G11 Industrial 5G / 4G Cellular Gateway
Key Features
-
Quad-core 64-bit 1.5Ghz ARM Processor
-
Choice of 4 or 8GB of RAM and up to 32GB onboard Storage
-
1 x Ethernet - 10/100/1000 + PoE Power option
-
5G/4G/3G/2G Cellular interface
-
Dual Sim card slots
-
Optional GNSS interface
-
HDMI External Display support
-
Optional: WiFi + Bluetooth 5.0 BLE
-
External USB 3.0 port
-
1-Wire interface
-
RS232 & RS422 / RS485
-
Ability to install additional applications
-
Docker containerisation support
-
Programming languages - Python / C / Java / Rust / Go
-
Expansion via Daughtercards - LoRaWAN, USB storage
-
16 x Software Defined Input / Output ports

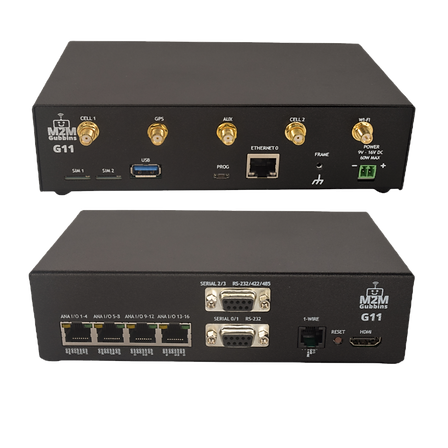

Front
Rear
The G11 is the fully customisable connectivity solution with 16 software defined IO ports each with 9 different operating modes.
Your Highly Flexible Solution
The G11 Gateway has been designed to provide a highly flexible solution for your remote connectivity, edge processing and system integration requirements.
At the core of the system is a quad-core 1.5GHz ARM processor, supported by a dedicated microcontroller. This secondary processor provides independent hardware and software watchdog functionality, including the ability to recover or reboot the main processor if required, alongside system-level monitoring and low-power sleep/wake functionality for reduced power deployments.
Versatile Wireless Connectivity
The G11 supports a wide range of wireless connectivity options, including:
-
Cellular connectivity from NB-IoT through to 5G
-
Dual-band Wi-Fi (2.4GHz and 5GHz)
-
Bluetooth, including BLE 5.0
-
Optional LoRaWAN concentrator module support
The cellular modem is implemented using an internal M.2 module, allowing future cellular technology upgrades without replacing the entire platform.
Dynamic Software-Defined I/O
One of the most distinctive features of the G11 is its sixteen software-defined Input/Output ports.
Each port can be dynamically configured in software using one of nine operating modes (see specifications), including the ability to switch between input and output functionality as required by the application.
Ports can also be dynamically reconfigured during operation to support changing deployment requirements and different control or monitoring tasks.
The sixteen ports are presented via four standard RJ45 connectors, simplifying installation and reducing the need for specialised connectors or custom wiring looms.
​​​Operating System Adaptability
The G11 supports multiple operating system options depending on deployment requirements.
For routing-focused applications, OpenWrt provides a powerful and lightweight platform. For gateway and edge-processing applications, Ubuntu or Debian offer access to the extensive Linux software ecosystem and apt package management tools.
The platform can also support a full desktop operating system with graphical user interface output via HDMI, alongside USB peripherals such as keyboards, touchscreens and storage devices. This enables applications including local dashboards, kiosk systems, on-site monitoring interfaces and edge visualisation platforms.
Built for Multifaceted Deployments
The combination of flexible connectivity, software-defined I/O, Linux operating systems and expansion capability allows the G11 to adapt to a wide range of deployment roles.
From industrial automation and remote monitoring through to edge computing, local control systems and smart infrastructure, the G11 is designed to support real-world deployments where flexibility, upgradeability and long-term adaptability matter.
Connect. Process. Control.
Integration & Platform Capabilities
The G11 Platform is designed to bridge connectivity, edge processing and local control within a single flexible system. From industrial protocols and wireless sensors through to VPN connectivity, automation and custom applications, the G11 can integrate with a wide range of real-world deployments.
With flexible connectivity, software-defined I/O and Linux-based expansion capability, the G11 is built to adapt to changing deployment requirements: supporting long-term, dependable and upgradeable industrial and IoT solutions.
