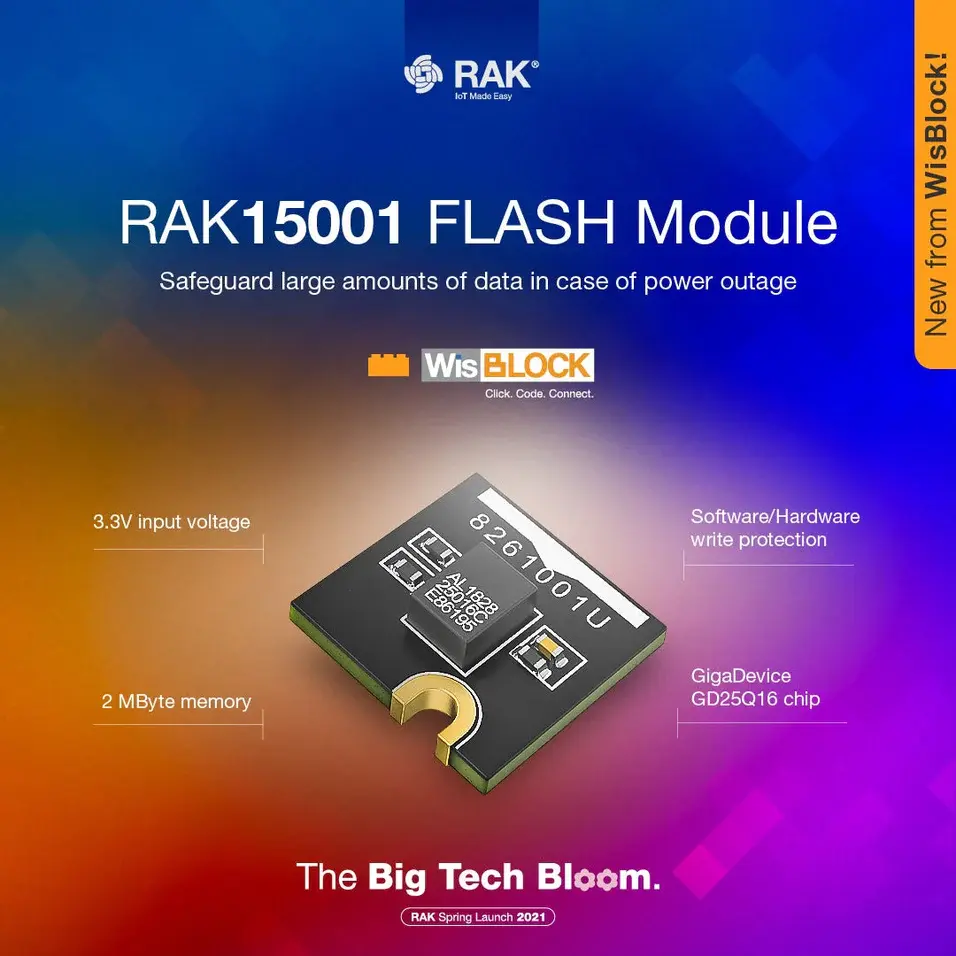

The RAK15001 WisBlock Flash Module extends your WisBlock system with fast, non-volatile storage using the GigaDevice GD25Q16 NOR Flash chip.

With 16 Mbit (2 MByte) of capacity and a standard SPI interface, it’s ideal for storing large, frequently accessed data such as lookup tables, calibration maps, or multimedia assets.

While Flash memory provides much higher capacity than EEPROM, it supports fewer write/erase cycles, making it better suited for static or reference data rather than constantly changing sensor readings.

Compact and power-efficient, the RAK15001 delivers reliable memory expansion for WisBlock projects that need fast access to stable data without increasing power consumption.

Key Features

16 Mbit (2 MByte) non-volatile Flash memory
Based on GigaDevice GD25Q16 chip
Standard SPI interface (SCLK, CS#, SI, SO, WP#, HOLD#)
Suitable for storing lookup tables, images and audio files
Hardware and software write protection options
Wide voltage range (2.7 – 3.6 V)
Low standby current (< 5 µA)
Compact 10 × 10 mm form factor
Industrial-grade operating range (–40 °C to +85 °C)

Ideal For

Lookup and conversion table storage
Firmware and asset backup in IoT devices
Multimedia storage (images or sound clips)
Data logging systems requiring frequent reads
Embedded and industrial WisBlock solutions
